Compact cable construction for pump installations
Three insulated copper cores are arranged in a flat formation and protected by an outer sheath. The flat profile supports installation through constrained routes commonly associated with submersible pump systems.
Selection should be based on motor load, route length, voltage drop, current requirement and environmental conditions.
✓
Flexible multi strand electrolytic copper conductors
✓
Three cores arranged in a compact flat profile
✓
PVC insulation and protective outer sheath
✓
Selected sizes for submersible pump connections
Key selection factors
- Nominal conductor area and strand count
- Conductor resistance at the specified temperature
- Insulation and sheath thickness
- Overall cable width and thickness
- Current carrying and voltage drop requirement

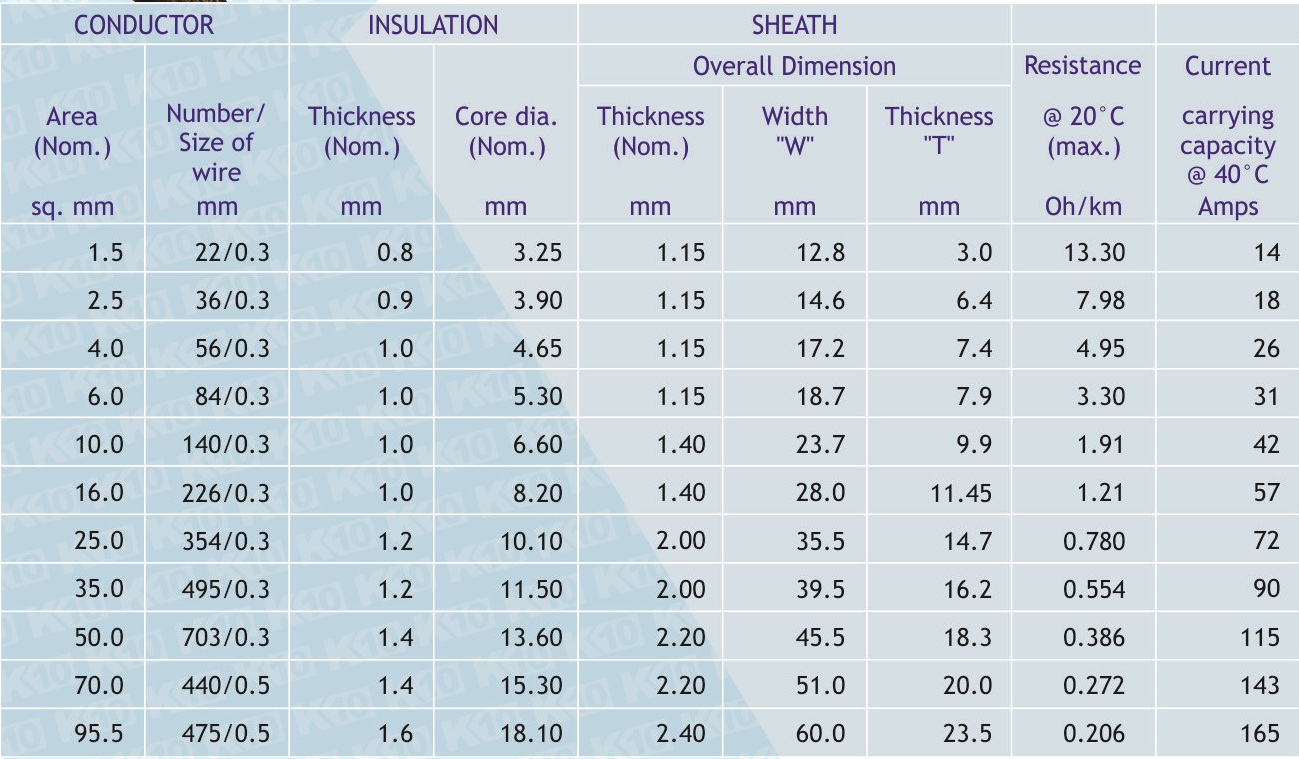

Reference specification information
The original K10 product information included a size and current carrying reference table. Treat any table as guidance only and confirm the current controlled specification for the selected cable before purchase.
